Collar Type Volumetric Powder – Granules / Detergent

SPS-103

Operative range:

Grains, Pulses, Sugar, Rice, Detergent

Technical Data:

Filling Range	upto 10 K.g
Sealing type	Center Seal Pillow Type
Pouch Size	L-50-320 mm, W-60-220 mm
Packing Speed	20-70 Pouch Per Minute
Dimension	14000 X 970 X 1160 mm
Power Load	5 KW, 3 Phase
Air Consumption	6.0 Kg/Sg.cm

Technical Details:

HMI & PLC : Mitsubishi / Fuji (Japanese)
Servo Drive : Mitsubishi / Fuji (Japanese)
Temperature controller : Omron PID (Japanese)
Geared Motor : Bonvario (Italian)
A.C. Drive : Fuji (Japanese)
Photocell : P&F, (German)
Sensor : P&F (German)
Pneumatic : Festo (German) , SMC (Japanese)
Contact parts : Stainless steel 304 Food Grade
Infeed Screw Elevator/Bucket elevator with base hopper and level sensor (optional)
Pouch take off conveyor (optional)
Date coding unit (Optional)

All contact parts of food grade stainless steel Mechanical/Pneumatic based model low maintain machine

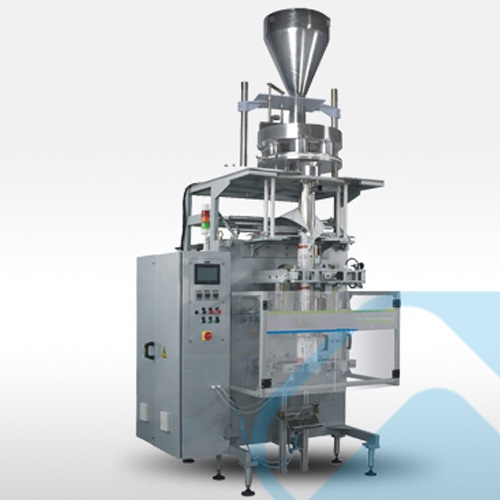

Collar Type Volumetric type pouch packaging Machine is a modern packing machine manufactured by Sunpack Solutions Pvt Ltd. This machine is designed for hardcore industrial utilization.

It shares a significant portion of its design and parts with the pneumatic packing machine, but its improvised technicalities make it suitable for better operability. In fact, it can run at double the production rate as that of the pneumatic packing machine.

This collar type packing machine is positioned to serve businesses that aspire to provide premium pouch finishing. Its low maintenance and wide operating range is another reason why this is one of our highest sellers in the category.

In terms of robustness, everything right from the cladding to the components used are of high quality with excellent fit and finish. You can load up to 5 kgs for granules and 200 g for powdered substances for the packing operation. It can help you pack powdered material like coffee powder, spices, flours, Henna, flours, while you can pack granules such as detergents, tea leaves, tobacco, pulses, rice, semolina and dalia.

It comes with an automatic Conveyor feeding system, which enhances the capabilities of the pneumatic collar type mechanism. The automatic feeding mechanism helps keep the operators free while increasing the efficiency of your production line.

Serving the industry for more than two decades, Sunpack Group has carved out a niche in the packing machines industry. Reach out to arvind.sunpackgroup@gmail.com for getting more insights on this modern packing machine.
