Four Multi Head Collar Type Machines - Sunpack Solutions Pvt. Ltd.

 SPS-104

Four Multi Head Collar Type Machines Snacks Granules Chips



Operative range:

Potato Chips, Kurkure, Macroni, Indian Namkeen, Puffed Snacks, Dry fruits, Nuts, Candies, Seeds, Soya Chunks, Breakfast Cereals, High Counts Biscuits, Pasta, Whole Spices

Technical Data:

Filling Range
upto 10 K.g
Sealing type
Center Seal Pillow Type
Pouch Size
L-50-320 mm, W-60-220 mm
Packing Speed
20-70 Pouch Per Minute
Dimension
14000 X 970 X 1160 mm
Power Load
5 KW, 3 Phase
Air Consumption
6.0 Kg/Sg.cm

Technical Details:

    • HMI & PLC  : Mitsubishi / Fuji (Japanese)
    • Servo Drive : Mitsubishi / Fuji (Japanese)
    • Temperature controller : Omron PID   (Japanese)
    • Geared Motor : Bonvario (Italian)
    • A.C. Drive : Fuji (Japanese)
    • Photocell : P&F, (German)
    • Sensor : P&F (German)
    • Pneumatic : Festo (German) , SMC (Japanese)
    • Contact parts : Stainless steel 304 Food Grade
    • Infeed Screw Elevator/Bucket elevator with base hopper and level sensor (optional)
    • Pouch take off conveyor (optional)
    • Date coding unit (Optional)

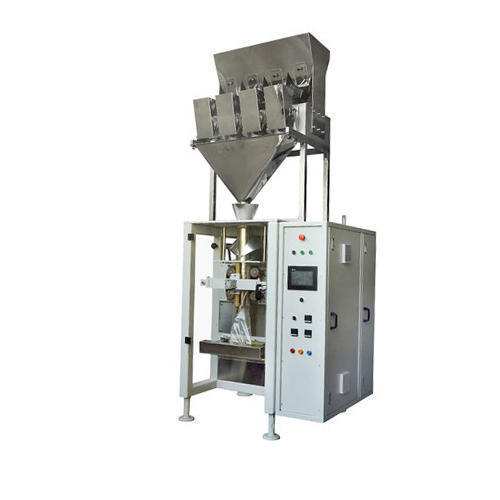

Four Head Collar Type Machines is another collar type packaging machine from the Sunpack group. It features a highly accurate weighing mechanism combined with a decent production rate. It weighs the granules and directly initiates the packing process. Here, the Center Seal Pillow Type sealing mechanism type is used. You will also get an auto conveyor system for performing the feeding operation.

If you are looking for an automatic packing machine that can be used to pack expensive material at an affordable price, then this is the right choice for you. This machine is specifically designed to pack granules of any size and free flowing powders. You can easily pack granules like pulses, rice, chips, namkeen, dry fruits, seeds, whole spices and tea leaves. Among free flowing powders you can pack salt, granulated sugar and detergent. With an average production rate of 11-12 kgs of material per minute, this machine gives you an economical yet robust packing solution.

Key Technical Features That Make Sunpack’s Four Multi Head Collar Type Packing Machine Superior

One of the major highlights of this packing machine is that you can pack any type of granule/ free flow powders with a high degree of accuracy. Among other features, superior quality pouch finishing is also one of its USPs. This machine requires less maintenance, and it supports a wide range of operating conditions with a high level of accuracy.

To make it more user friendly and ergonomically suitable, it comes with a 7-inch touch screen for operating purposes. It is a part of our initiative to help businesses get started with Industry 4.0 as we continue to digitize our industrial machinery.

Feel free to contact Sunpack Group to explore the wide range of high-speed packaging machines we provide. Call +917696181624, we are waiting for you! You can contact us considering the following timings:
