 SPS-104

Multi Head Collar Type Packing Machines

Operative range:

Kurkure, Macroni, Indian Namkeen, Puffed Snacks, Dry fruits, Nuts, Candies, Seeds, Soya Chunks, Breakfast Cereals, High Counts Biscuits, Pasta, Whole Spices

Technical Data:

Filling Range
upto 10 K.g
Sealing type
Center Seal Pillow Type
Pouch Size
L-50-320 mm, W-60-220 mm
Packing Speed
20-70 Pouch Per Minute
Dimension
14000 X 970 X 1160 mm
Power Load
5 KW, 3 Phase
Air Consumption
6.0 Kg/Sg.cm

Technical Details:

    • HMI & PLC  : Mitsubishi / Fuji (Japanese)
    • Servo Drive : Mitsubishi / Fuji (Japanese)
    • Temperature controller : Omron PID   (Japanese)
    • Geared Motor : Bonvario (Italian)
    • A.C. Drive : Fuji (Japanese)
    • Photocell : P&F, (German)
    • Sensor : P&F (German)
    • Pneumatic : Festo (German) , SMC (Japanese)
    • Contact parts : Stainless steel 304 Food Grade
    • Infeed Screw Elevator/Bucket elevator with base hopper and level sensor (optional)
    • Pouch take off conveyor (optional)
    • Date coding unit (Optional)

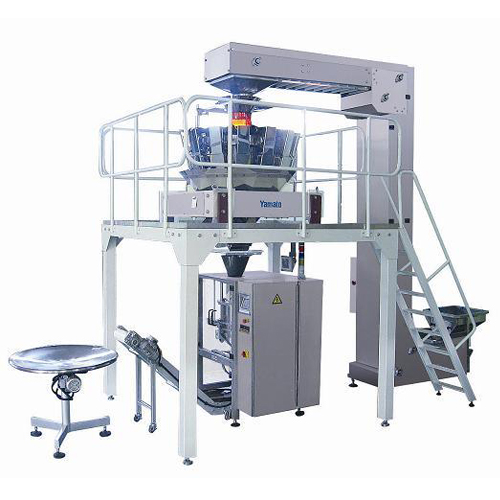

Multi Head Collar Type Machine is an enhanced version of the Four Multi Head Collar Type Packing Machine presented by the Sunpack Group. When the granules are concerned, it provides better accuracy than the volumetric machine. It comes with an auto conveyor system for feeding. There are two types of Multi Head Collar Type Machines to choose from:

1.Ten headwear
2.Fourteen headwear

These machines are made for heavy duty industrial usage. You can enjoy a high accuracy in combination with a high production rate. At Sunpack Group, we offer you a wide range of packaging machines to choose from. We have an in-house R&D centre with the latest stack of design and analysis software solutions to ensure that our clients get dependable machines with consistent performance.

Who Can Benefit From Multi Head Collar Type Packing Machines

If you are looking for a packing machine that provides exceptionally good finished packages with full accuracy and a high production capacity, then this is the ideal machine for you.

The ten headwear machine has a high production rate of 30-32 Kgs of granules per minute, whereas the fourteen headwear machine can perform packing at 40-45 kgs per minute. The packing quality and the speed of packing is suitable for bigger organizations that are willing to promote their brand alongside bulk packing. Using this packaging machinery, you can easily pack a wide variety of granules such as tea leaves, namkeen, candies, pulses, grains and whole spices.

Feel free to get in touch with Sunpack Group, a reputed name among the packing machine manufacturers of India to learn more about reliable, high-speed packaging machines. Contact us at +917696181624 during the below timings to get quick answers to all your queries:
