Quality Mixture Pulverizer Machine- Affordable Price At Sunpack Solutions Pvt. Ltd.

 SPS-111

Mixture And Pulverizer Machine

Operative range:

Spices, Atta (Flour Products), Milk Powder, Nutraceuticals, Coffee Powder, Premixes, Instant Mixes, Agro Chemicals, Pesticides.

Technical Data:

Filling Range
upto 5 K.g (as per req.)
Sealing type
Center Seal
Max. Film Width
700 mm
Packing Speed
30-100 Pouch Per Minute
Dimensions
1860 X 1230 X 2850 mm
Power Load
5 KW, 3 Phase
Air Consumption
6.0 Kg/Sg.cm

Technical Details:

    • HMI & PLC  : Mitsubishi / Fuji (Japanese)
    • Servo Drive : Mitsubishi / Fuji (Japanese)
    • Temperature controller : Omron PID   (Japanese)
    • Geared Motor : Bonvario (Italian)
    • A.C. Drive : Fuji (Japanese)
    • Photocell : P&F, (German)
    • Sensor : P&F (German)
    • Pneumatic : Festo (German) , SMC (Japanese)
    • Contact parts : Stainless steel 304 Food Grade
    • Infeed Screw Elevator/Bucket elevator with base hopper and level sensor (optional)
    • Pouch take off conveyor (optional)
    • Date coding unit (Optional)

All contact parts of food grade stainless steel Servo/Mechanical/Pneumatic based model low maintain machine

Operative range:

Grains, Pulses, Sugar, Rice, Detergent

Technical Data:

Filling Range
upto 5 K.g (as per req.)
Sealing type
Center Seal
Max. Film Width
700 mm
Packing Speed
30-100 Pouch Per Minute
Dimensions
1860 X 1230 X 2850 mm
Power Load
5 KW, 3 Phase
Air Consumption
6.0 Kg/Sg.cm

Technical Details:

    • HMI & PLC  : Mitsubishi / Fuji (Japanese)
    • Servo Drive : Mitsubishi / Fuji (Japanese)
    • Temperature controller : Omron PID   (Japanese)
    • Geared Motor : Bonvario (Italian)
    • A.C. Drive : Fuji (Japanese)
    • Photocell : P&F, (German)
    • Sensor : P&F (German)
    • Pneumatic : Festo (German) , SMC (Japanese)
    • Contact parts : Stainless steel 304 Food Grade
    • Infeed Screw Elevator/Bucket elevator with base hopper and level sensor (optional)
    • Pouch take off conveyor (optional)
    • Date coding unit (Optional)

All contact parts of food grade stainless steel, Servo/Mechanical/Pneumatic based model low maintain machine

SPS 111 is a robust yet sophisticated machine that is especially useful for grinding and mixing granules. It has two different sets of functions: mixing and pulverizing.

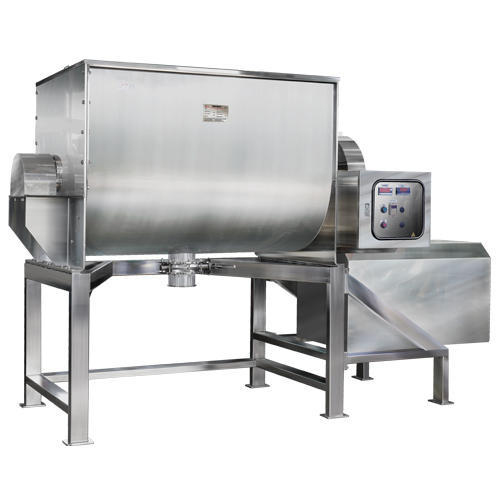

A mixer helps in including various powders in predetermined proportions for making various spice recipes and powder preparations.

It is designed to handle a homogeneous mixture of 100 liters to 500 liters, and Stainless 316 is used in it. It facilitates the grinding and mixing of whole spices like teas, spices, and red chilies. This can be useful in creating mixtures of spices to create seasonings.

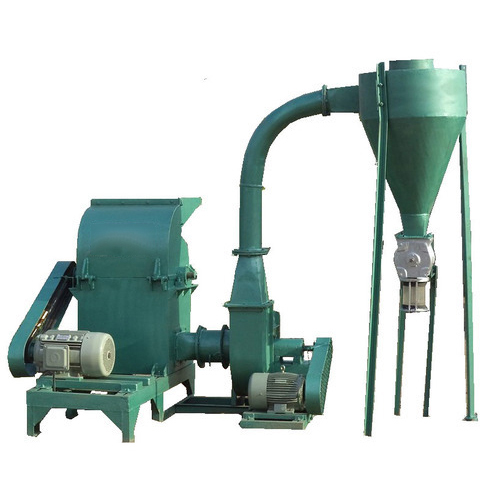

A pulverizer is a machine that turns material into powder form and it is useful for grinding purposes. For instance, whole spices are ground with the help of a pulverizer before using it for making a spice mix recipe.

Generally, pulverizers are classified as Impact and hammer-type pulverizers. The hammer-type pulverizer is useful for producing a few coarse powders like red chilies and cinnamon. Both of them are available in Sunpack Group’s offerings.

The impact type pulverizer is used when the powder needs to be extremely fine, like in the case of Turmeric. Both of them are available in all required operating ranges that go from 50 kgs per hour to 500 kgs per hour. The mixture and pulverizer packing machine are available in both MS Steel and SS Steel mixture and pulverizer body.

Feel free to contact Sunpack Solutions and take a step towards boosting your industrial productivity. Our clients are highly satisfied with the service we provide and we are eager to add you to the list of our happy customers!
